TYPE
|
DESCRIPTION
|
SELECT
|
|---|---|---|
|
Category
|
Film Capacitors
|
|
|
Mfr
|
EPCOS – TDK Electronics
|
|
|
Series
|
B32776
|
|
|
Package
|
Bulk
|
|
|
Part Status
|
Active
|
|
|
Capacitance
|
10 µF
|
|
|
Tolerance
|
±10%
|
|
|
Voltage Rating – AC
|
–
|
|
|
Voltage Rating – DC
|
1300V (1.3kV)
|
|
|
Dielectric Material
|
Polypropylene (PP), Metallized
|
|
|
ESR (Equivalent Series Resistance)
|
6.5 mOhms
|
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
Radial
|
|
|
Size / Dimension
|
1.654″ L x 1.102″ W (42.00mm x 28.00mm)
|
|
|
Height – Seated (Max)
|
1.457″ (37.00mm)
|
|
|
Termination
|
PC Pins
|
|
|
Lead Spacing
|
1.476″ (37.50mm)
|
|
|
Applications
|
DC Link, DC Filtering
|
|
|
Ratings
|
–
|
|
|
Features
|
Long Life
|

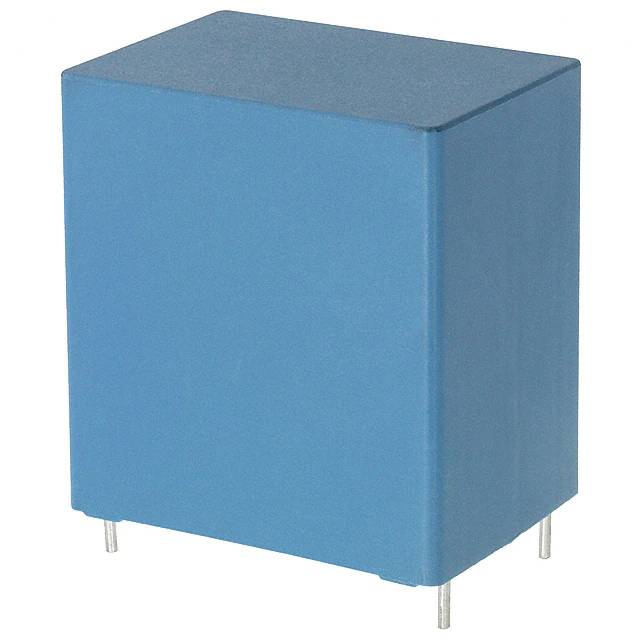

B32776G1106K000
|
Manufacturer
|
EPCOS – TDK Electronics
|
|
|
Manufacturer Product Number
|
B32776G1106K000
|
|
| Supplier |
EPCOS – TDK Electronics
|
|
|
Description
|
CAP FILM 10UF 10% 1.3KVDC RADIAL
|
|
|
Manufacturer Standard Lead Time
|
92 Weeks
|
|
|
Detailed Description
|
10 µF Film Capacitor – 1300V (1.3kV) Polypropylene (PP), Metallized Radial
|
|
Enquiry about B32776G1106K000
Description
DATASHEET
DATASHEET
Environmental & Export Classifications
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8532.25.0070 |
Additional Resources
Additional Resources
| ATTRIBUTE | DESCRIPTION |
|---|---|
| Other Names |
B32776G1106K
B32776G1106K-ND
|
| Standard Package | 110 |
