TYPE
|
DESCRIPTION
|
SELECT
|
|---|---|---|
|
Category
|

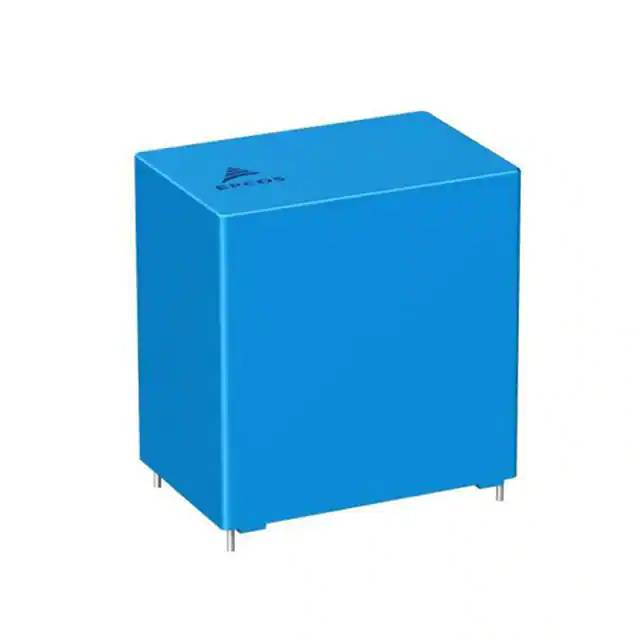

Film Capacitors
|
|
|
Mfr
|
EPCOS – TDK Electronics
|
|
|
Series
|
B32776H
|
|
|
Package
|
Bulk
|
|
|
Part Status
|
Active
|
|
|
Capacitance
|
12 µF
|
|
|
Tolerance
|
±10%
|
|
|
Voltage Rating – AC
|
–
|
|
|
Voltage Rating – DC
|
920V
|
|
|
Dielectric Material
|
Polypropylene (PP), Metallized
|
|
|
ESR (Equivalent Series Resistance)
|
10 mOhms
|
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
|
Mounting Type
|
Through Hole
|
|
|
Package / Case
|
Radial – 4 Leads
|
|
|
Size / Dimension
|
1.654″ L x 1.102″ W (42.00mm x 28.00mm)
|
|
|
Height – Seated (Max)
|
1.457″ (37.00mm)
|
|
|
Termination
|
PC Pins
|
|
|
Lead Spacing
|
1.476″ (37.50mm)
|
|
|
Applications
|
DC Link, DC Filtering
|
|
|
Ratings
|
AEC-Q200
|
|
|
Features
|
Long Life
|
