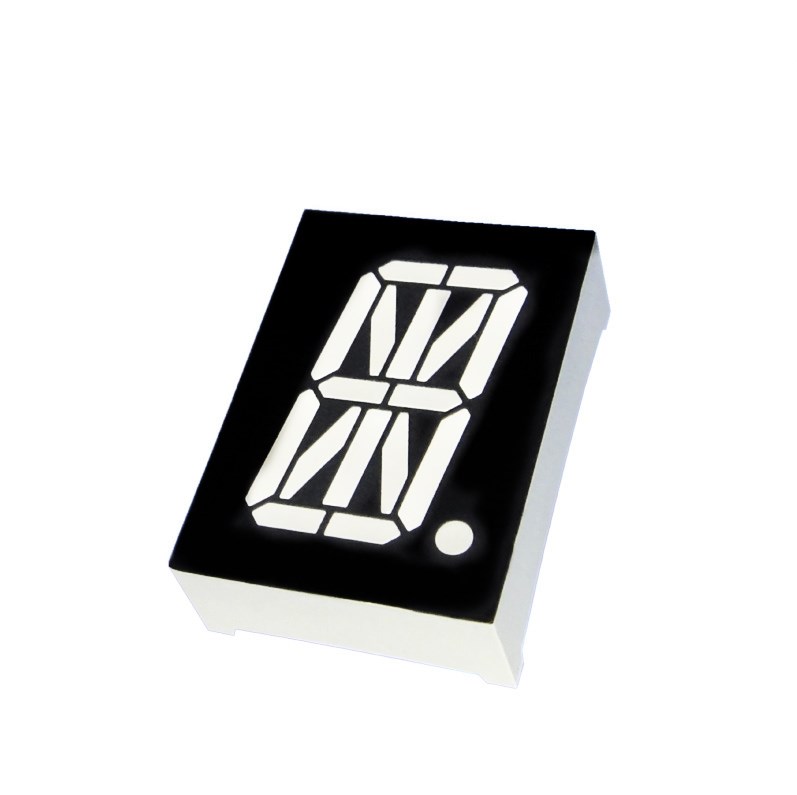

Sigle Digit 2.3 Inch Alphanumerical Digital Display
| Port: | Shenzhen, China |
|---|---|
| Production Capacity: | 10kkpcs/Year |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Outline Dimensions: | 44X30.5X9mm |
|---|---|
| Digit Height: | 2.3 Inch |
| Dp Number: | 1 PC |
| Digit Number: | 1 Digit |
| Chip Matrial: | 4-Element |
| Transport Package: | Reel Packing |
Enquiry about Sigle Digit 2.3 Inch Alphanumerical Digital Display
Description
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
2.3 Inch Single Digit 16 Segment LED Display with Static Circuit with RoHS
What is the size detail and circuit?
1. Summary:
| Digit Height: | 0.56 inch digit height |
| Available Emitting color: | Red, yellow-green, orange, amber, yellow, pure green, blue, white |
| Available Face color: | Red, white, grey, and black. |
| Available Segment Color: | Red, white (milky),water clear, and yellow. |
| Available Electrode: | Common anode or common cathode |
2. What emitting color you can have?
| Part No. | Chip | IV@IF=20mA | Iv@IF=20mA | |||||
| Common Cathode | Common Anode |
Material | Color | WLD | One Seg | One DP | ||
| Min. | Typ. | Min. | Typ. | |||||
| LD23012AUR | LD23012BUR | AlGaInP | Ultra Red | 640 | 30 | 45 | 30 | 45 |
| LD23012AUO | LD23012BUO | AlGaInP | Ultra Orange | 625 | 45 | 60 | 45 | 60 |
| LD23012AUA | LD23012BUA | AlGaInP | Ultra Amber | 605 | 30 | 45 | 30 | 45 |
| LD23012AUY | LD23012BUY | AlGaInP | Ultra Yellow | 595 | 30 | 45 | 30 | 45 |
| LD23012AUG | LD23012BUG | AlGaInP | Ultra Green | 573 | 30 | 45 | 30 | 45 |
| LD23012APG | LD23012BPG | InGaN | Pure Green | 525 | 120 | 300 | 120 | 300 |
| LD23012AUB | LD23012BUB | InGaN | Ultra Blue | 470 | 30 | 45 | 30 | 45 |
| LD23012AW | LD23012BW | InGaN | Ultra White | 100 | 120 | 100 | 120 | |
| Unit: | nm | mcd | mcd | mcd | mcd | |||
3. What max voltage and current you can use to drive it?
| Color | Electrical Characteristics[1] | Absolute Maximum Ratings[1] | |||||
| VF@ IF=20mA[2] | Reverse Current VR=5V |
Power Dissipation | DC Forward Current | Peak Forward Current[3] | |||
| Typ. | Max. | ||||||
| Super Red | 1.9 | 2.6 | 30 | 60 | 20 | 100 | |
| Ultra Red | 2.0 | 2.6 | 30 | 65 | 20 | 100 | |
| Orange | 2.0 | 2.6 | 30 | 65 | 20 | 100 | |
| Yellow | 2.0 | 2.6 | 30 | 65 | 20 | 100 | |
| Yellow green | 2.1 | 2.6 | 30 | 75 | 20 | 100 | |
| Pure Green | 3.0 | 3.6 | 30 | 110 | 20 | 100 | |
| Blue | 3.0 | 3.6 | 30 | 120 | 20 | 100 | |
| White | 3.0 | 3.6 | 30 | 120 | 20 | 100 | |
| Unit: | V | V | uA | mW | mA | mA | |
