8×8 Matrix 2.3 Inch Square Dot Single Color

Port:	Shenzhen, China
Production Capacity:	10 000 000PCS/Year
Payment Terms:	L/C, T/T, Western Union, Paypal

Usage:	LED Display
Size:	8*8
Emitting Color:	Homochromy homochromy
Power:	3W
IP Rating:	Not Water-Proof
Pixel Pitch:	7.62mm

PRODUCT DESCRIPTION

2.3 Inch 8X8 Square DOT Matrix LED Display

2.3 Inch 8X8 Square DOT Matrix Display with RoHS Compliant From China Manufacturer

FEATURES

2.37 inch matrix height
Dot size 6x6mm
Signle color
Standard: Black/gray face, Square white dot
Low current operation
High contrast and light output
Stackable horizontally and vertically
Column cathode and column anode available
Easy mounting on P.C. boards or sockets
Mechanically rugged
Industrial standard size.
Pb free and RoHS compliant.1. What is the size detail and circuit?

2. Summary:

Digit Height:	2.3 inch digit height
Available Emitting color:	Red, yellow-green, orange, amber, yellow, pure green, blue, white
Available Face color:	Red, white, grey, and black.
Available Segment Color:	Red, white (milky),water clear, and yellow.
Available Electrode:	Common anode or common cathode

3. What emitting color you can have?

Part No.		Chip			I_V@I_F=20mA		Iv@IF=20mA
Common Cathode Row	Common Anode Row	Material	Color	WLD	One Seg		One DP
Common Cathode Row	Common Anode Row	Material	Color	WLD	Min.	Typ.	Min.	Typ.
LM230882AUR	LM230882BUR	AlGaInP	Ultra Red	633	30	45	30	45
LM230882AUO	LM230882BUO	AlGaInP	Ultra Orange	625	45	60	45	60
LM230882AUA	LM230882BUA	AlGaInP	Ultra Amber	605	30	45	30	45
LM230882AUY	LM230882BUY	AlGaInP	Ultra Yellow	595	30	45	30	45
LM230882AUG	LM230882BUG	AlGaInP	Ultra Green	573	30	45	30	45
LM230882APG	LM230882BPG	InGaN	Pure Green	525	120	300	120	300
LM230882AUB	LM230882BUB	InGaN	Ultra Blue	470	30	45	30	45
LM230882AW	LM230882BW	InGaN	Ultra White		100	120	100	120
Unit:				nm	mcd	mcd	mcd	mcd

4. What max voltage and current you can use to drive it?

Color	Electrical Characteristics^[1]			Absolute Maximum Ratings^[1]
	V_F@ I_F=20mA^[2]		Reverse Current VR=5V	Power Dissipation	DC Forward Current	Peak Forward Current^[3]
	Typ.	Max.	Reverse Current VR=5V	Power Dissipation	DC Forward Current	Peak Forward Current^[3]
Ultra Red	1.9	2.6	30	60	20	100
Ultra Orange	2.0	2.6	30	65	20	100
Ultra Amber	2.0	2.6	30	65	20	100
Ultra Yellow	2.0	2.6	30	65	20	100
Yellow green	2.1	2.6	30	75	20	100
Pure Green	3.0	3.6	30	110	20	100
Blue	3.0	3.6	30	120	20	100
White	3.0	3.6	30	120	20	100
Unit:	V	V	uA	mW	mA	mA

5. APPLICATIONS

Home and smart appliances
Display time and digital combination
Industrial and instrumental applications
Numeric status

Our Services/Why choose Us 1. Professional service: replied within 24 hours(at workdays).
2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.
4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.

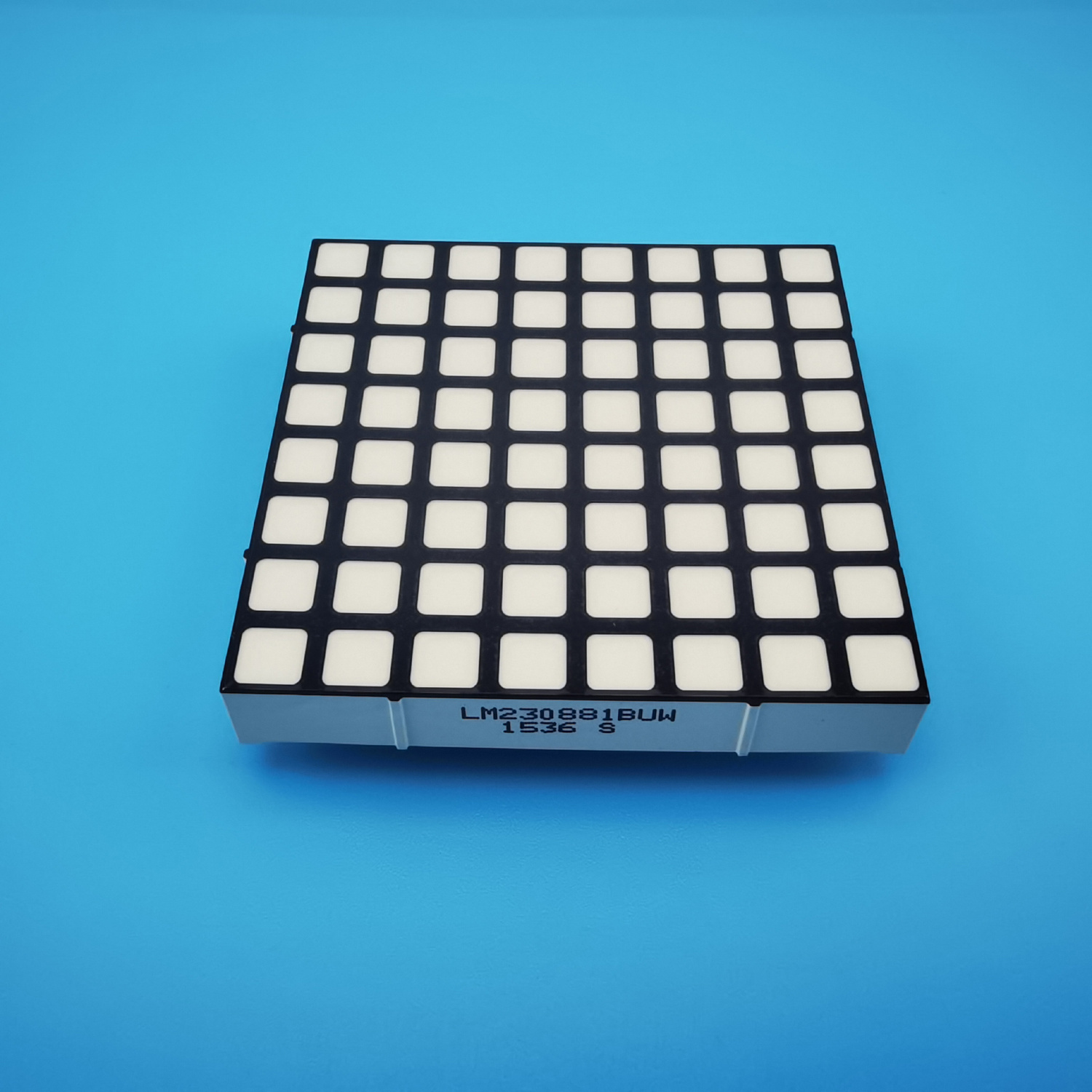

8x8 Matrix 2.3 Inch Square Dot Single Color

Click to enlarge

Previous product

2.3 Inch 8X8 RGB Color

Back to products

Next product

8x8 Matrix 2.3 Inch Square Dot Dual Color

Port:	Shenzhen, China
Production Capacity:	10 000 000PCS/Year
Payment Terms:	L/C, T/T, Western Union, Paypal

Usage:	LED Display
Size:	8*8
Emitting Color:	Homochromy homochromy
Power:	3W
IP Rating:	Not Water-Proof
Pixel Pitch:	7.62mm

Compare

Add to wishlist

Description
PRODUCT DESCRIPTION
Product Details

Description

Basic Info.

Model NO.

LM230882

LED Chips

Mic

Waterproof

Not Waterproof

Life

50000h

Certification

Reach and RoHS

Outline Dimensions

60.2X60.2X8mm

Digit Height

2.3 Inch

DOT Number

64PCS

Chip Matrial

4-Element

Transport Package

Reel Packing

Specification

8×8

Origin

China

HS Code

8531200000

Digit Height:	2.3 inch digit height
Available Emitting color:	Red, yellow-green, orange, amber, yellow, pure green, blue, white
Available Face color:	Red, white, grey, and black.
Available Segment Color:	Red, white (milky),water clear, and yellow.
Available Electrode:	Common anode or common cathode

Part No.		Chip			I_V@I_F=20mA		Iv@IF=20mA
Common Cathode Row	Common Anode Row	Material	Color	WLD	One Seg		One DP
Common Cathode Row	Common Anode Row	Material	Color	WLD	Min.	Typ.	Min.	Typ.
LM230882AUR	LM230882BUR	AlGaInP	Ultra Red	633	30	45	30	45
LM230882AUO	LM230882BUO	AlGaInP	Ultra Orange	625	45	60	45	60
LM230882AUA	LM230882BUA	AlGaInP	Ultra Amber	605	30	45	30	45
LM230882AUY	LM230882BUY	AlGaInP	Ultra Yellow	595	30	45	30	45
LM230882AUG	LM230882BUG	AlGaInP	Ultra Green	573	30	45	30	45
LM230882APG	LM230882BPG	InGaN	Pure Green	525	120	300	120	300
LM230882AUB	LM230882BUB	InGaN	Ultra Blue	470	30	45	30	45
LM230882AW	LM230882BW	InGaN	Ultra White		100	120	100	120
Unit:				nm	mcd	mcd	mcd	mcd

Color	Electrical Characteristics^[1]			Absolute Maximum Ratings^[1]
	V_F@ I_F=20mA^[2]		Reverse Current VR=5V	Power Dissipation	DC Forward Current	Peak Forward Current^[3]
	Typ.	Max.	Reverse Current VR=5V	Power Dissipation	DC Forward Current	Peak Forward Current^[3]
Ultra Red	1.9	2.6	30	60	20	100
Ultra Orange	2.0	2.6	30	65	20	100
Ultra Amber	2.0	2.6	30	65	20	100
Ultra Yellow	2.0	2.6	30	65	20	100
Yellow green	2.1	2.6	30	75	20	100
Pure Green	3.0	3.6	30	110	20	100
Blue	3.0	3.6	30	120	20	100
White	3.0	3.6	30	120	20	100
Unit:	V	V	uA	mW	mA	mA
