HomeLEDsLED DOT MATRIX 5×8 Matrix 2.3 Inch Single Color
Previous product
5x8 Matrix 1.8 Inch Dual Color
Back to products
Next product
5x8 Matrix 2.3 Inch Full Color

5×8 Matrix 2.3 Inch Single Color

Port: Shenzhen, China
Production Capacity: 10 000 000PCS/Year
Payment Terms: L/C, T/T, Western Union, Paypal
Usage: LED Display
Size: 5*8
Emitting Color: Two-color
Power: 3W
IP Rating: Not Water-Proof
Pixel Pitch: 7.62mm
Compare
Add to wishlist

Enquiry about 5x8 Matrix 2.3 Inch Single Color

  • Description
  • PRODUCT DESCRIPTION
  • Product Details
Description

Basic Info.

Model NO.
LM23058
LED Chips
Mic
Waterproof
Not Waterproof
Life
50000h
Certification
Reach and RoHS
Outline Dimensions
60.6X37.8X8.8mm
Digit Height
2.3 Inch
DOT Number
40PCS
Chip Matrial
4-Element
Transport Package
Reel Packing
Specification
5×7
Origin
China
HS Code
8531200000
PRODUCT DESCRIPTION

PRODUCT DESCRIPTION

Product Name

2.3 Inch 5X8 DOT Matrix LED Display with RoHS

Detailed Photos

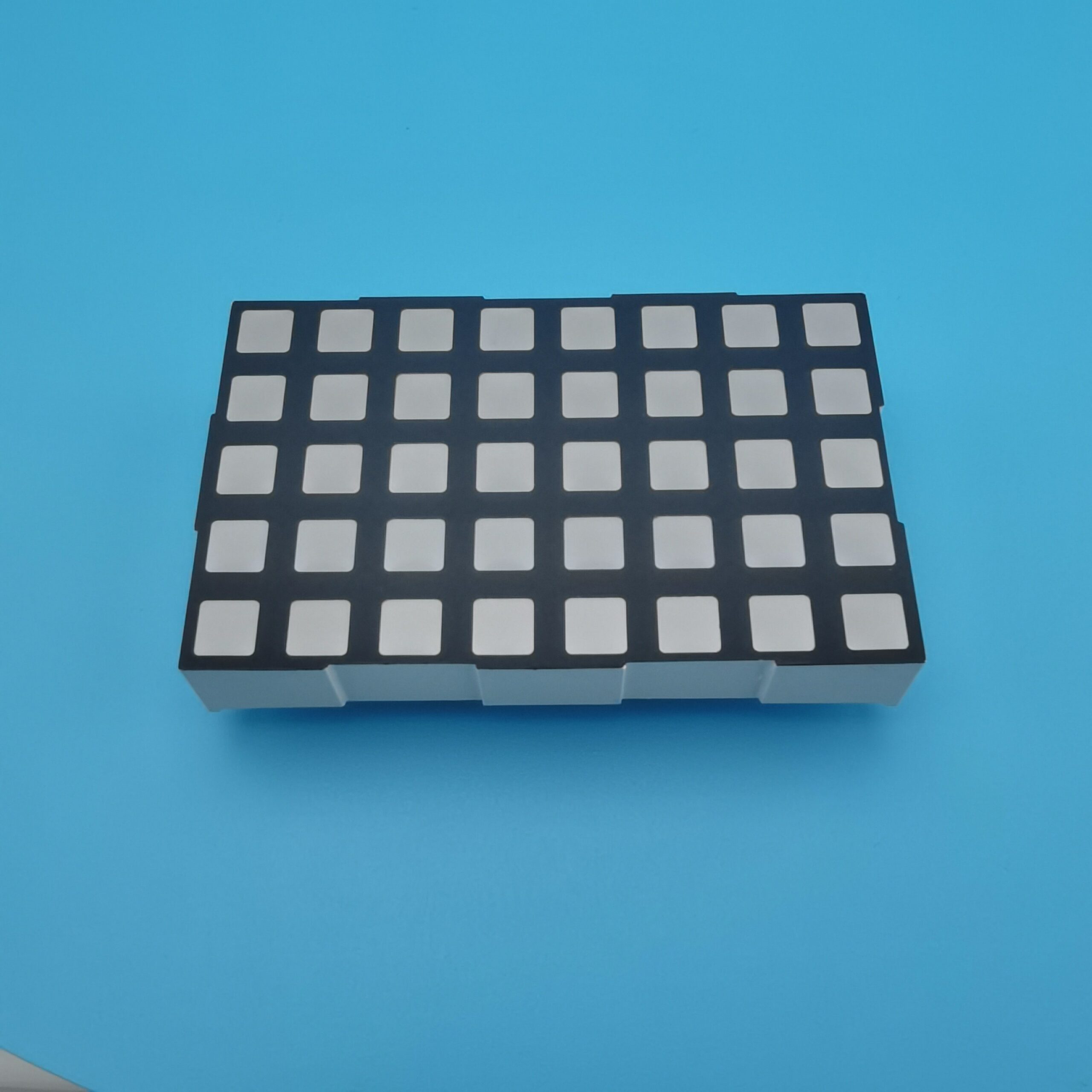

2.3 Inch 5X8 DOT Matrix LED Display with RoHS From Expert Manufacturer
2.3 Inch 5X8 DOT Matrix LED Display with RoHS From Expert Manufacturer
2.3 Inch 5X8 DOT Matrix LED Display with RoHS From Expert Manufacturer



Package Dimensions

2.3 Inch 5X8 DOT Matrix LED Display with RoHS From Expert Manufacturer

Internal Circuit Diagram

2.3 Inch 5X8 DOT Matrix LED Display with RoHS From Expert Manufacturer

Selection Guide

1. Summary:

Digit Height: 1.5 inch digit height
Available Emitting color: Red, yellow-green, orange, amber, yellow, pure green, blue, white
Available Face color: Red, white, grey, and black.
Available Segment Color: Red, white (milky),water clear, and yellow.
Available Electrode: Common anode or common cathode

2. What emitting color you can have?

Part No. Chip IV@IF=20mA Iv@IF=20mA
Common Cathode Row Common
Anode Row
Material Color WLD One Seg One DP
Min. Typ. Min. Typ.
 LM23058AUR  LM23058BUR AlGaInP Ultra Red 633 30 45 30 45
 LM23058AUO  LM23058BUO AlGaInP Ultra Orange 625 45 60 45 60
 LM23058AUA  LM23058BUA AlGaInP Ultra Amber 605 30 45 30 45
 LM23058AUY  LM23058BUY AlGaInP Ultra Yellow 595 30 45 30 45
 LM23058AUG  LM23058BUG AlGaInP Ultra Green 573 30 45 30 45
 LM23058APG  LM23058BPG InGaN Pure Green 525 120 300 120 300
 LM23058AUB  LM23058BUB InGaN Ultra Blue 470 30 45 30 45
 LM23058AW  LM23058BW InGaN Ultra White 100 120 100 120
Unit: nm mcd mcd mcd mcd

3. What max voltage and current you can use to drive it?

Color Electrical Characteristics[1] Absolute Maximum Ratings[1]
VF@ IF=20mA[2]                  Reverse
Current
VR=5V
Power Dissipation DC Forward Current Peak Forward Current[3]
Typ. Max.
Ultra Red 1.9 2.6 30 60 20 100
Ultra Orange 2.0 2.6 30 65 20 100
Ultra Amber 2.0 2.6 30 65 20 100
Ultra Yellow 2.0 2.6 30 65 20 100
Yellow green 2.1 2.6 30 75 20 100
Pure Green 3.0 3.6 30 110 20 100
Blue 3.0 3.6 30 120 20 100
White 3.0 3.6 30 120 20 100
 Unit: V V uA mW mA mA



>>>MICRO IC LED Dot Matrix Series

Ø  The common types: 4X4, 5X7, 5X8, 8X8, and 16X16.
Ø  The common size: 0.7 inch,1 inch,1.2 inch,1.5inch,2 inch,3 inch, and 4 inch.
Ø  Through-hole type or SMD Type is available.
Ø  Round dot or Square dot is available.
Ø  Our White color LED dot matrix is high-quality made with Good brightness Uniformity compared to common white   color products in the market.

Ø  Customization is available. Design according to your demand.

Our Services/Why choose Us

1. Professional service:  replied within 24 hours(at workdays).
2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.
4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.
