4 Digit 0.52 Inch Single Color 7 Segment Display
Port: | Shenzhen, China |
---|---|
Production Capacity: | 1000000PCS/Year |
Payment Terms: | L/C, T/T, Western Union, Paypal |
Tube Chip Color: | Single Color |
---|---|
Display Function: | Numbers and Some Alphabets |
Scanning Mode: | Static Scan |
Display Type: | Segment LED Display |
Application: | Shopping Guide, Meters and Instruments |
Certification: | RoHS, Reach |
Enquiry about 4 Digit 0.52 Inch Single Color 7 Segment Display
PRODUCT DESCRIPTION

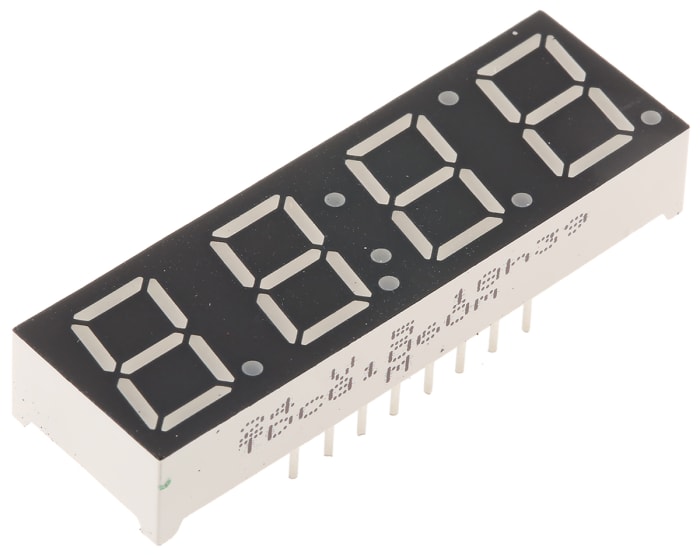

0.52 Inch 4 Digits 7 Segment LED Display with RoHS
Ø 13.2mm (0.52 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Ø Alternative emitting luminosity:
Ø Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
Four Digit 7 Segment LED Display, Digit Height:13.20mm(0.52 inch), External Dimensions: 50.80×17.50×7.00mm (L x W x H) | ||||||||
Part No. | Chip | IV@IF=20mA | Iv@IF=20mA | |||||
Common Cathode | Common Anode |
Material | Color | WLD | One Seg | One DP | ||
Min. | Typ. | Min. | Typ. | |||||
LD5241AR | LD5241BR | GaAlAs | Super Red | 640 | 8 | 10 | 8 | 10 |
LD5241AD | LD5241BD | GaAlAs | Hi-Red | 640 | 18 | 25 | 18 | 25 |
LD5241AO | LD5241BO | GaAsP | Orange | 625 | 7 | 9 | 7 | 9 |
LD5241AY | LD5241BY | GaAsP | Yellow | 588 | 8 | 10 | 8 | 10 |
LD5241AG | LD5241BG | GaP | Green | 568 | 7 | 9 | 7 | 9 |
LD5241AUR | LD5241BUR | AlGaInP | Ultra Red | 640 | 30 | 45 | 30 | 45 |
LD5241AUO | LD5241BUO | AlGaInP | Ultra Orange | 625 | 45 | 60 | 45 | 60 |
LD5241AUA | LD5241BUA | AlGaInP | Ultra Amber | 605 | 30 | 45 | 30 | 45 |
LD5241AUY | LD5241BUY | AlGaInP | Ultra Yellow | 595 | 30 | 45 | 30 | 45 |
LD5241AUG | LD5241BUG | AlGaInP | Ultra Green | 573 | 30 | 45 | 30 | 45 |
LD5241APG | LD5241BPG | InGaN | Pure Green | 525 | 120 | 300 | 120 | 300 |
LD5241AUB | LD5241BUB | InGaN | Ultra Blue | 470 | 30 | 45 | 30 | 45 |
LD5241AUW | LD5241BUW | InGaN | Ultra White | 100 | 120 | 100 | 120 | |
Unit: | nm | mcd | mcd | mcd | mcd |
