| Port: | Shenzhen, China |
|---|---|
| Production Capacity: | 1000000PCS/Year |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Usage: | LED Display |
|---|---|
| Size: | 5*7 |
| Emitting Color: | Two-color |
| Power: | 75MW/Chip |
| IP Rating: | IP0 |
| Pixel Pitch: | 4.57mm |

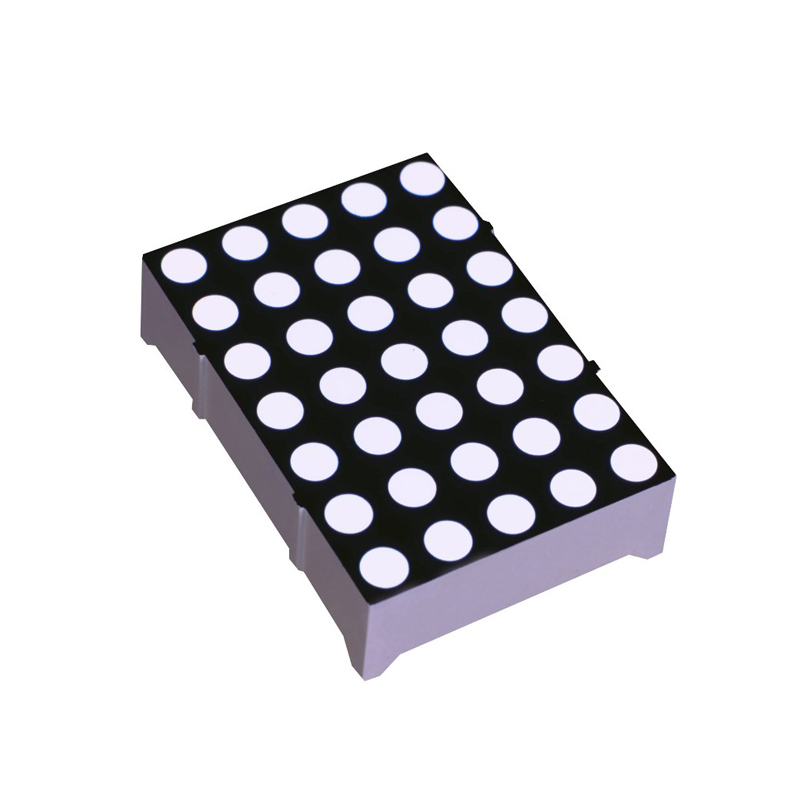

1.2 Inch 5X7 LED DOT Matrix with Dual Color with RoHS
Ø 39.1 mm (1.2inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Ø Alternative emitting luminosity:
Ø Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
| 1.2 inch 8×8 Red-Green LED dot matrix module, Matrix Height: 32mm(1.2inch), External Dimensions: 32x32x8mm (L x W x H) | ||||||||
| Description | Part No. | Chip | Iv(mcd)@20mA | |||||
| Common Cathode Row |
Common Anode Row |
Material | Color | W LD (nm) |
One Dot | |||
| Min. | Typ. | |||||||
| Standard Brightness |
LM12157ARG | LM12157BRG | GaAlAs | Super Red | 640 | 8 | 10 | |
| GaP | Green | 568 | 7 | 9 | ||||
| Ultra-High Brightness |
LM12157AURUG | LM12157BURUG | AlGaInP | Ultra Red | 640 | 30 | 45 | |
| AlGaInP | Ultra Green | 573 | 30 | 45 | ||||
MICRO IC LED DOT MATRIX
Ø The common types: 4X4, 5X7, 5X8, 8X8, and 16X16.
Ø The common size: 0.7 inch,1 inch,1.2 inch,1.5inch,2 inch,3 inch, and 4 inch.
Ø Through-hole type or SMD Type is available.
Ø Round dot or Square dot is available.
Ø Our White color LED dot matrix is high-quality made with Good brightness Uniformity compared to common white color products in the market.
