| Port: | Shenzhen, China |
|---|---|
| Production Capacity: | 1000000PCS/Year |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Usage: | LED Display |
|---|---|
| Size: | 5*7 |
| Emitting Color: | Homochromy homochromy |
| Power: | 75MW/Chip |
| IP Rating: | IP0 |
| Pixel Pitch: | 4.57mm |

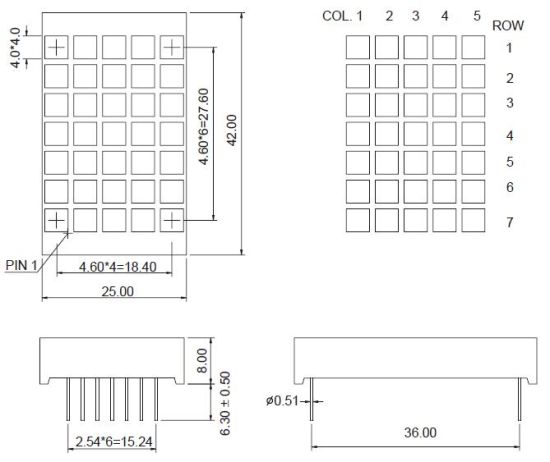

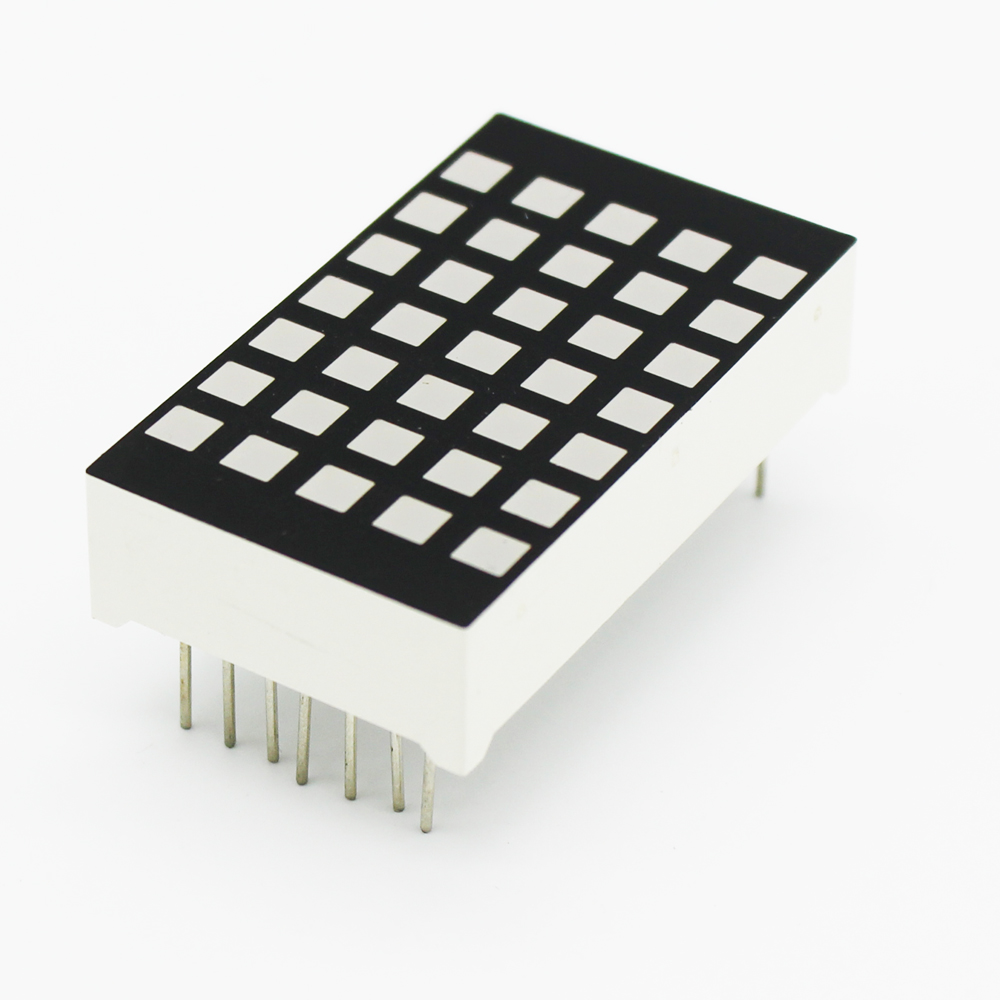

1.2 Inch 5X7 LED Square DOT Matrix with RoHS from expert manufacturer
Ø 31.6 mm (1.2inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Ø Alternative emitting luminosity:
Ø Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
| Part No. | Chip | Iv@IF=20mA | ||||
| Common Cathode Row |
Common Anode Row |
Material | Color | WLD | One Dot | |
| Min. | Typ. | |||||
| LM12457AR | LM12457BR | GaAlAs | Super Red | 640 | 8 | 10 |
| LM12457AD | LM12457BD | GaAlAs | Hi-Red | 640 | 18 | 25 |
| LM12457AO | LM12457BO | GaAsP | Orange | 625 | 7 | 9 |
| LM12457AY | LM12457BY | GaAsP | Yellow | 588 | 8 | 10 |
| LM12457AG | LM12457BG | GaP | Green | 568 | 7 | 9 |
| LM12457AUR | LM12457BUR | AlGaInP | Ultra Red | 640 | 30 | 45 |
| LM12457AUO | LM12457BUO | AlGaInP | Ultra Orange | 625 | 45 | 60 |
| LM12457AUA | LM12457BUA | AlGaInP | Ultra Amber | 605 | 30 | 45 |
| LM12457AUY | LM12457BUY | AlGaInP | Ultra Yellow | 595 | 30 | 45 |
| LM12457AUG | LM12457BUG | AlGaInP | Ultra Green | 573 | 30 | 45 |
| LM12457APG | LM12457BPG | InGaN | Pure Green | 525 | 120 | 300 |
| LM12457AUB | LM12457BUB | InGaN | Ultra Blue | 470 | 30 | 45 |
| LM12457AUW | LM12457BUW | SMD | Ultra White | 100 | 120 | |
| Unit: | nm | mcd | mcd | |||
MICRO IC Dot Matrix Series
Ø The common types: 4X4, 5X7, 5X8, 8X8, and 16X16.
Ø The common size: 0.7 inch,1 inch,1.2 inch,1.5inch,2 inch,3 inch, and 4 inch.
Ø Through-hole type or SMD Type is available.
Ø Round dot or Square dot is available.
Ø Our White color LED dot matrix is high-quality made with Good brightness Uniformity compared to common white color products in the market.
Please send mail to get more products details.
Our Services/Why choose Us
1. Professional service: replied within 24 hours(at workdays).
2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.
4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.
