8×8 Matrix 1.5 Inch Single Color
Port: | Shenzhen, China |
---|---|
Production Capacity: | 1000000PCS/Year |
Payment Terms: | L/C, T/T, Western Union, Paypal |
Usage: | LED Display |
---|---|
Size: | 8*8 |
Emitting Color: | Homochromy homochromy |
Power: | 75MW/Chip |
Pixel Pitch: | 2.54mm |
LED Chips: | Epistar |
Enquiry about 8x8 Matrix 1.5 Inch Single Color
PRODUCT DESCRIPTION

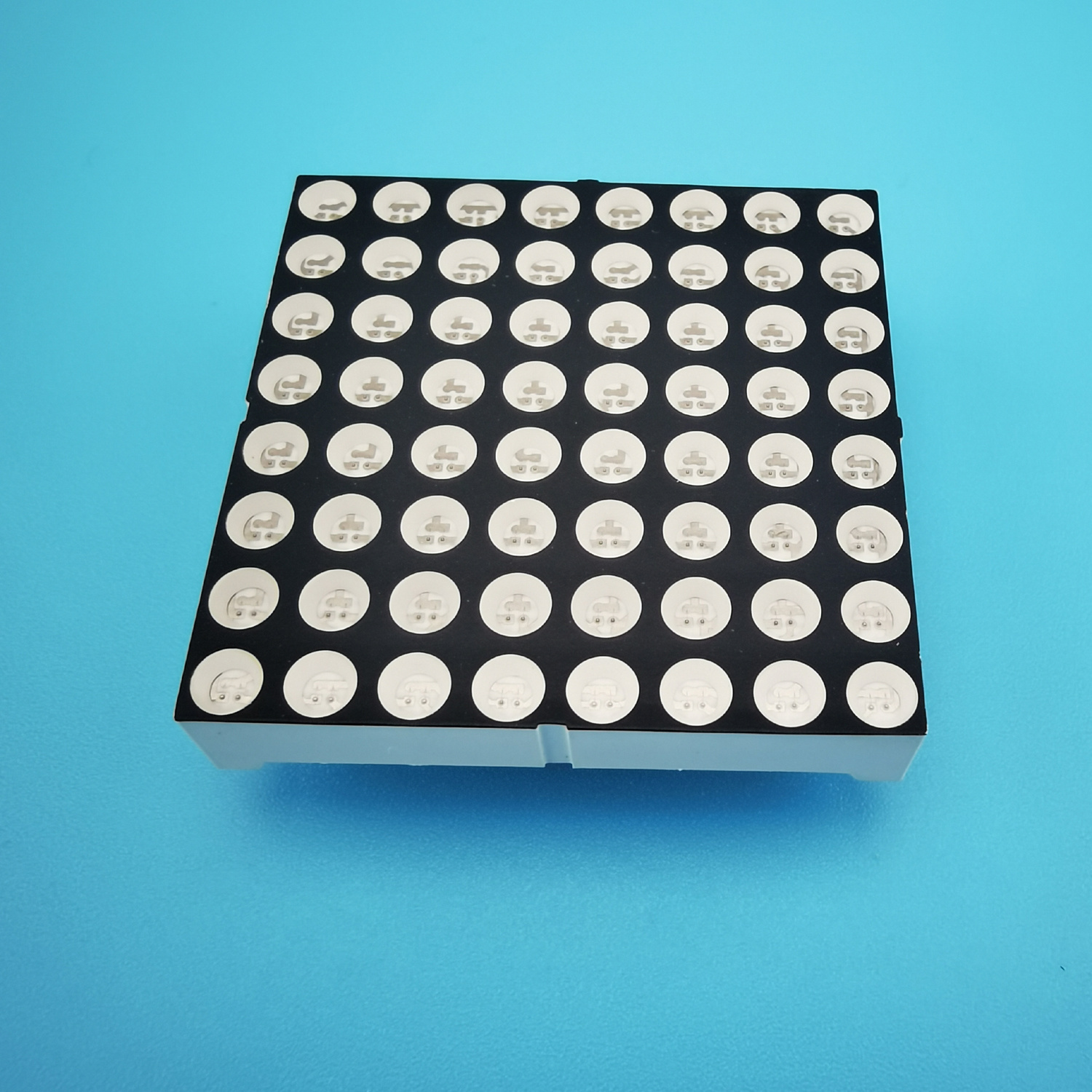

Customized 1.5 Inch 8X8 LED DOT Matrix
Squre DOT also can be customized.
Dot shape can be Customized to your design.
1. Package Dimensions and Internal Circuit Diagram
2. Features
- 37.90 mm (1.50 inch) matrix height
- Dot size: Diameter 3.70 mm
- Pitch: 4.75 mm
- Wide viewing angle
- Range of emitted colors
- I.C. compatible
- Low power consumption
- White dot, grey or black face
- RoHS compliant
3. Available options
Ø Alternative emitting luminosity:Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Common Cathode or Anode is available
Part No. | Chip | Iv@IF=20mA | ||||
Common Cathode Row |
Common Anode Row |
Material | Color | WLD | One Dot | |
Min. | Typ. | |||||
LM15088CUR | LM15088DUR | AlGaInP | Ultra Red | 640 | 30 | 45 |
LM15088CUO | LM15088DUO | AlGaInP | Ultra Orange | 625 | 45 | 60 |
LM15088CUA | LM15088DUA | AlGaInP | Ultra Amber | 605 | 30 | 45 |
LM15088CUY | LM15088DUY | AlGaInP | Ultra Yellow | 595 | 30 | 45 |
LM15088CUG | LM15088DUG | AlGaInP | Ultra Green | 573 | 30 | 45 |
LM15088CPG | LM15088DPG | InGaN | Pure Green | 525 | 120 | 300 |
LM15088CUB | LM15088DUB | InGaN | Ultra Blue | 470 | 30 | 45 |
LM15088CUW | LM15088DUW | SMD | Ultra White | 100 | 120 | |
Unit: | nm | mcd | mcd |
5·Electrical Characteristics & Absolute Maximum Ratings
Color | Electrical Characteristics[1] | Absolute Maximum Ratings[1] | |||||
VF@ IF=20mA[2] | Reverse Current VR=5V |
Power Dissipation | DC Forward Current | Peak Forward Current[3] | |||
Typ. | Max. | ||||||
Ultra Red | Per Dot | 1.9 | 2.6 | 30 | 60 | 20 | 100 |
Ultra Orange | Per Dot | 2.0 | 2.6 | 30 | 65 | 20 | 100 |
Ultra Amber | Per Dot | 2.0 | 2.6 | 30 | 65 | 20 | 100 |
Ultra Yellow | Per Dot | 2.0 | 2.6 | 30 | 65 | 20 | 100 |
Ultra Green | Per Dot | 2.1 | 2.6 | 30 | 75 | 20 | 100 |
Pure Green | Per Dot | 3.0 | 3.5 | 30 | 110 | 20 | 100 |
Ultra Blue | Per Dot | 3.0 | 3.5 | 30 | 120 | 20 | 100 |
Ultra White | Per Dot | 3.0 | 3.5 | 30 | 120 | 20 | 100 |
Unit: | V | V | uA | mW | mA | mA |
