TYPE
|
DESCRIPTION
|
SELECT
|
---|---|---|
Category
|
Power Supplies – Board Mount
DC DC Converters
|
|
Mfr
|
TDK-Lambda Americas Inc
|
|
Series
|
CC-E (10W)
|
|
Package
|
Tray
|
|
Part Status
|
Active
|
|
Type
|
Isolated Module
|
|
Number of Outputs
|
1
|
|
Voltage – Input (Min)
|
4.5V
|
|
Voltage – Input (Max)
|
9V
|
|
Voltage – Output 1
|
3.3V
|
|
Voltage – Output 2
|
–
|
|
Voltage – Output 3
|
–
|
|
Current – Output (Max)
|
2.5A
|
|
Power (Watts)
|
10 W
|
|
Voltage – Isolation
|
500 V
|
|
Applications
|
ITE (Commercial)
|
|
Features
|
–
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Efficiency
|
–
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
7-SMD Module
|
|
Size / Dimension
|
1.40″ L x 0.89″ W x 0.35″ H (35.6mm x 22.6mm x 8.8mm)
|
|
Control Features
|
Enable, Active Low
|
|
Base Product Number
|
CC10-0503
|

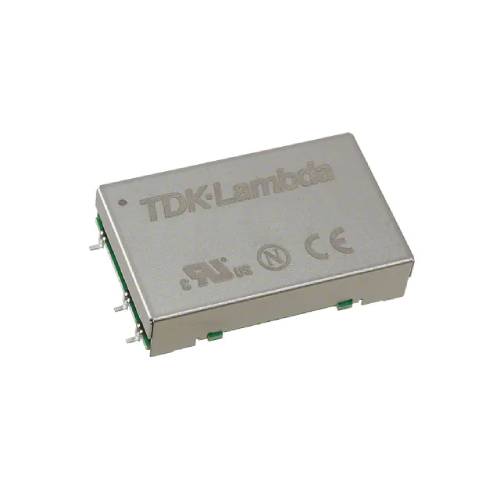

CC10-0503SR-E
Manufacturer
|
TDK-Lambda Americas Inc
|
|
Manufacturer Product Number
|
CC10-0503SR-E
|
|
Supplier |
TDK-Lambda Americas Inc
|
|
Description
|
DC DC CONVERTER 3.3V 10W
|
|
Manufacturer Standard Lead Time
|
26 Weeks
|
|
Detailed Description
|
Isolated Module DC DC Converter 1 Output 3.3V – – 2.5A 4.5V – 9V Input
|
Enquiry about CC10-0503SR-E
Description
DATASHEET
DATASHEET
Environmental & Export Classifications
Environmental & Export Classifications
ATTRIBUTE | DESCRIPTION |
---|---|
RoHS Status | RoHS Compliant |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
ECCN | EAR99 |
HTSUS | 8504.40.9580 |
California Prop 65 |
Additional Resources
Additional Resources
ATTRIBUTE | DESCRIPTION |
---|---|
Other Names |
CC100503SRE
CC10-0503SR-E-ND
445-3300
|
Standard Package | 10 |
