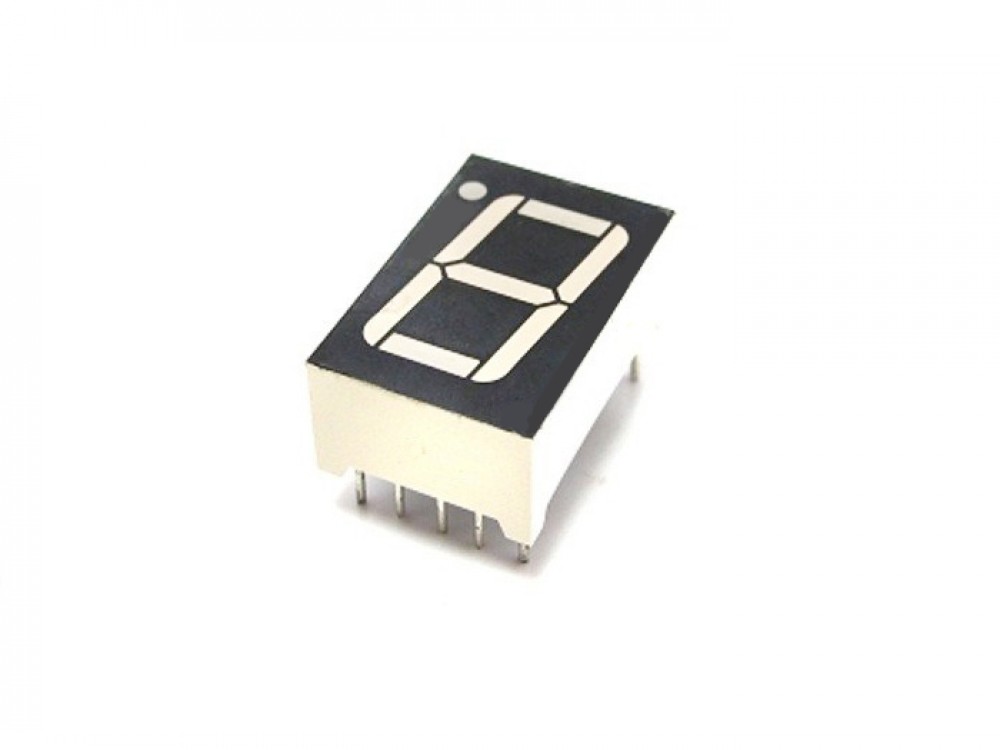

Single Digit 0.5 Inch Dual Color 7 Segment Display
Port: | Shenzhen, China |
---|---|
Production Capacity: | 1000000PCS/Year |
Payment Terms: | L/C, T/T, Western Union, Paypal |
Tube Chip Color: | Single Color |
---|---|
Display Function: | Numbers and Some Alphabets |
Scanning Mode: | Static Scan |
Display Type: | Segment LED Display |
Application: | Shopping Guide, Meters and Instruments |
Certification: | RoHS, Reach |
Enquiry about Single Digit 0.5 Inch Dual Color 7 Segment Display
PRODUCT DESCRIPTION
0.5 Inch Single Digit Dual Color 7 Segment LED Display
Ø 12.7 mm (0.50 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
Single Digit 7 Segment dual-color LED Display, Digit Height: 12.70mm(0.50inch), External Dimensions: 12.70×19.00×8.00mm (L x W x H) | ||||||||
Description | Part No. | Chip | Iv(mcd)@20mA | |||||
Cathode Row | Anode Row | Material | Color | W LD (nm) |
One Dot | |||
Min. | Typ. | |||||||
Standard Brightness |
LD5011ARG | LD5011BRG | GaAlAs | Super Red | 640 | 8 | 10 | |
GaP | Green | 568 | 7 | 9 | ||||
Ultra-High Brightness |
LD5011AURUG | LD5011BURUG | AlGaInP | Ultra Red | 640 | 30 | 45 | |
AlGaInP | Ultra Green | 573 | 30 | 45 |
