| Port: | Shenzhen, China |
|---|---|
| Production Capacity: | 1000000PCS/Year |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Usage: | LED Display |
|---|---|
| Size: | 8*8 |
| Emitting Color: | Homochromy homochromy |
| Power: | 75MW/Chip |
| IP Rating: | IP0 |
| Pixel Pitch: | 6mm |
1. Package Dimensions and Internal Circuit Diagram
2. Selection Guide

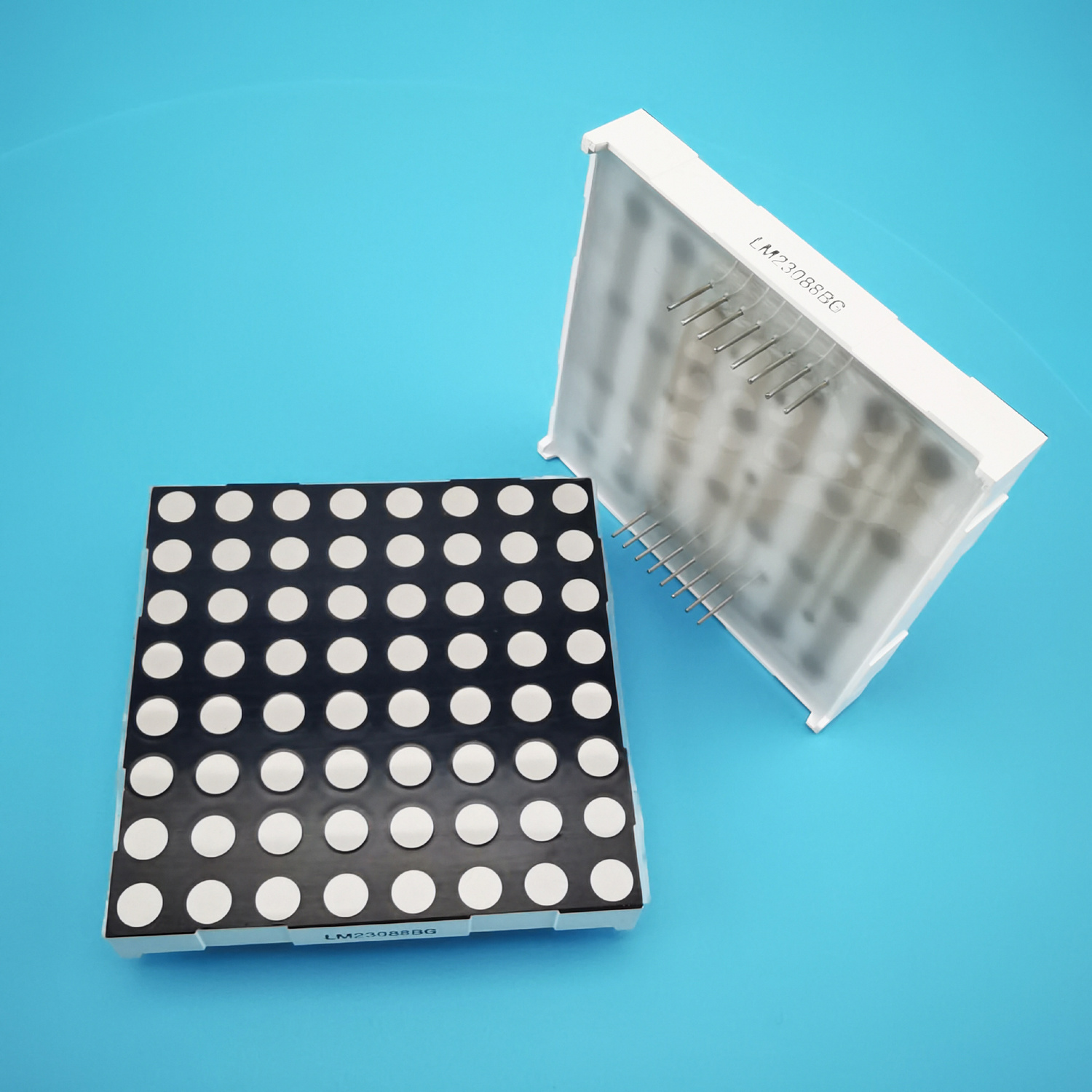

| 2.3 inch 8×8 BRGB LED dot matrix, Digit Height: 60.2mm(2.3inch), External Dimensions: 60.2×60.2×9.2 mm
(L x W x H)
|
||||||||
| Parameter | Part No. | Chip | Iv(mcd)@20mA | Iv(mcd)@20mA | ||||
| Row Anode Column Cathode | Material | Color | W LD (nm) |
One Dot | One Dot | |||
| Min. | Typ. | Min. | Typ. | |||||
| High Brightness Dot Matrix |
LM23088BURPGUB | AlGaInP | UR Ultra Red | 640 | 30 | 35 | 60 | 70 |
| GaN | PG Pure Green | 525 | 55 | 60 | 110 | 120 | ||
| GaN | UB Ultra Blue | 470 | 35 | 45 | 70 | 100 | ||
More details of the products,send mail to get the Specification.
Ø The common types: 4X4, 5X7, 5X8, 8X8, and 16X16.
Ø The common size: 0.7 inch,1 inch,1.2 inch,1.5inch,2 inch,3 inch, and 4 inch.
Ø Through-hole type or SMD Type is available.
Ø Round dot or Square dot is available.
Ø Our White color LED dot matrix is high-quality made with Good brightness Uniformity compared to common white color products in the market.
Ø Customized is available. Design according to your demand.
