| Port: | Shenzhen, China |
|---|---|
| Production Capacity: | 1000000PCS/Year |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Usage: | LED Display |
|---|---|
| Size: | 5*8 |
| Emitting Color: | Two-color |
| Power: | 75MW/Chip |
| IP Rating: | IP0 |
| Pixel Pitch: | 11.4mm |

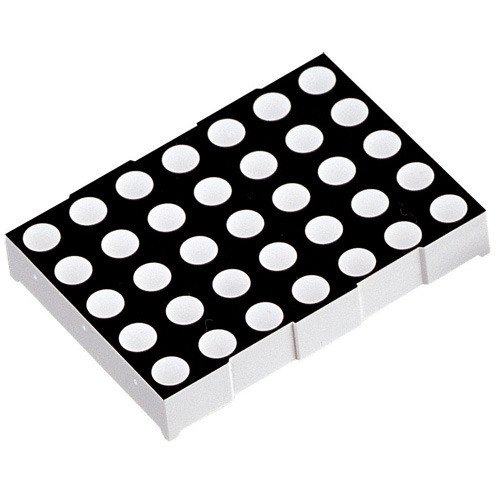

3.4 Inch 5X8 Dual Color LED DOT Matrix with RoHS
Ø 91.2mm (3.4inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Ø Alternative emitting luminosity:
Ø Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
| 3.40 inch 5×8 Red-Green LED dot matrix module, Matrix Height: 91.20mm(3.40 inch), External Dimensions: 56.80×91.20×9.20mm (L x W x H) | ||||||||
| Description | Part No. | Chip | Iv(mcd)@20mA | |||||
| Common Cathode Row |
Common Anode Row |
Material | Color | W LD (nm) |
One Dot | |||
| Min. | Typ. | |||||||
| Standard Brightness |
LM34058ARG | LM34058BRG | GaAlAs | Super Red | 640 | 12 | 15 | |
| GaP | Green | 568 | 10.5 | 13.5 | ||||
| Ultra-High Brightness |
LM34058AURUG | LM34058BURUG | AlGaInP | Ultra Red | 640 | 45 | 67.5 | |
| AlGaInP | Ultra Green | 573 | 45 | 67.5 | ||||
>>>MICRO IC LED Dot Matrix Series
Ø The common types: 4X4, 5X7, 5X8, 8X8, and 16X16.
Ø The common size: 0.7 inch,1 inch,1.2 inch,1.5inch,2 inch,3 inch, and 4 inch.
Ø Through-hole type or SMD Type is available.
Ø Round dot or Square dot is available.
Ø Our White color LED dot matrix is high-quality made with Good brightness Uniformity compared to common white color products in the market.
Ø Customized is available. Design according to your demand.
