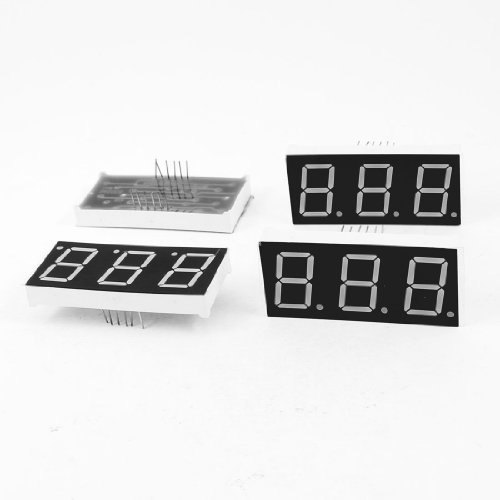

3 Digit 0.8 Inch Single Color 7 Segment Display
Port: | Shenzhen, China |
---|---|
Production Capacity: | 1000000PCS/Year |
Payment Terms: | L/C, T/T, Western Union, Paypal |
Outline Dimensions: | 59.2 0X27.50X8.30mm |
---|---|
Digit Height: | 0.8 Inch(20.3mm) |
Emitting Color: | Single Color |
Dp Number: | 3PCS |
Digit Number: | 3 Digit |
Chip Matrial: | 4-Element |
Enquiry about 3 Digit 0.8 Inch Single Color 7 Segment Display
PRODUCT DESCRIPTION
0.8 Inch 3 Digit Numeric LED digital Display with RoHS
Ø 20.3 mm (0.8 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Ø Alternative emitting luminosity:
Ø Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
Three Digit 7 Segment LED Display, Digit Height:20.30mm(0.80 inch), External Dimensions: 59.2 0x27.50×8.30mm (L x W x H ) | ||||||||
Part No. | Chip | IV@IF=20mA | Iv@IF=20mA | |||||
Common Cathode | Common Anode |
Material | Color | WLD | One Seg | One DP | ||
Min. | Typ. | Min. | Typ. | |||||
LD8031AUR | LD8031BUR | AlGaInP | Ultra Red | 640 | 30 | 45 | 30 | 45 |
LD8031AUO | LD8031BUO | AlGaInP | Ultra Orange | 625 | 45 | 60 | 45 | 60 |
LD8031AUA | LD8031BUA | AlGaInP | Ultra Amber | 605 | 30 | 45 | 30 | 45 |
LD8031AUY | LD8031BUY | AlGaInP | Ultra Yellow | 595 | 30 | 45 | 30 | 45 |
LD8031AUG | LD8031BUG | AlGaInP | Ultra Green | 573 | 30 | 45 | 30 | 45 |
LD8031APG | LD8031BPG | InGaN | Pure Green | 525 | 120 | 300 | 120 | 300 |
LD8031AUB | LD8031BUB | InGaN | Ultra Blue | 470 | 30 | 45 | 30 | 45 |
LD8031AUW | LD8031BUW | SMD | Ultra White | 100 | 120 | 100 | 120 | |
Unit: | nm | mcd | mcd | mcd | mcd |
