Basic Info.
Model NO.
LD2841A/B
Transport Package
EPE Foam and Carton
Specification
RoHS, REACH
Origin
China
HS Code
8531200000

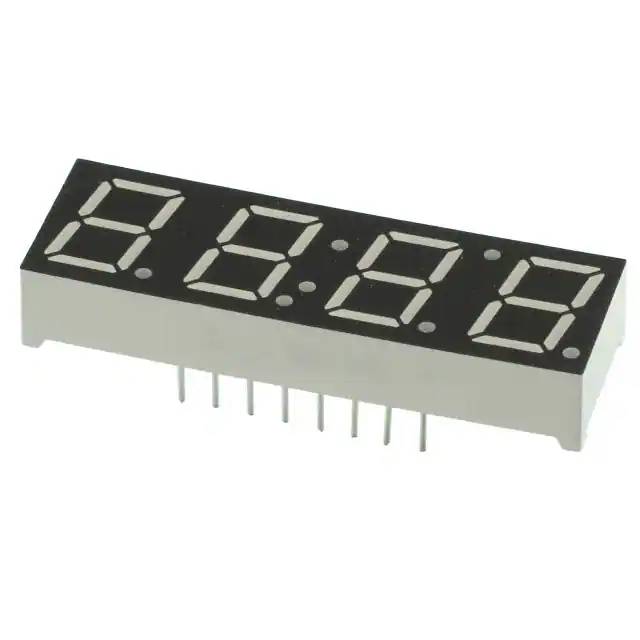

4 Digit 0.28 Inch Single Color Rectangular Segment Display
| Port: | Shenzhen, China |
|---|---|
| Production Capacity: | 1000000PCS/Year |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Outline Dimensions: | 32.20X10.10X5.80mm |
|---|---|
| Digit Height: | 0.28 Inch(7.00mm) |
| Emitting Color: | Single Color |
| Dp Number: | 6PCS |
| Digit Number: | 4 Digit |
| Chip Matrial: | 4-Element |
Enquiry about 4 Digit 0.28 Inch Single Color Rectangular Segment Display
Description
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
0.28 Inch 4 Digit 7 Segment LED Display with seven segments and DP.
Ø 7 mm (0.28 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Ø Alternative emitting luminosity:
Ø Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
| Four Digits 7 Segment LED Display, Digit Height: 7.00mm(0.28inch), External Dimensions: 32.20×10.10×5.80mm (L x W x H) | ||||||||
| Part No. | Chip | Iv@IF=20mA | Iv@IF=20mA | |||||
| Common Cathode |
Common Anode |
Material | Color | WLD | One Seg | One DP | ||
| Min. | Typ. | Min. | Typ. | |||||
| LD2841AR | LD2841BR | GaAlAs | Super Red | 640 | 8 | 10 | 8 | 10 |
| LD2841AD | LD2841BD | GaAlAs | Hi-Red | 640 | 18 | 25 | 18 | 25 |
| LD2841AO | LD2841BO | GaAsP | Orange | 625 | 7 | 9 | 7 | 9 |
| LD2841AY | LD2841BY | GaAsP | Yellow | 588 | 8 | 10 | 8 | 10 |
| LD2841AG | LD2841BG | GaP | Green | 568 | 7 | 9 | 7 | 9 |
| LD2841AUR | LD2841BUR | AlGaInP | Ultra Red | 640 | 30 | 45 | 30 | 45 |
| LD2841AUO | LD2841BUO | AlGaInP | Ultra Orange | 625 | 45 | 60 | 45 | 60 |
| LD2841AUA | LD2841BUA | AlGaInP | Ultra Amber | 605 | 30 | 45 | 30 | 45 |
| LD2841AUY | LD2841BUY | AlGaInP | Ultra Yellow | 595 | 30 | 45 | 30 | 45 |
| LD2841AUG | LD2841BUG | AlGaInP | Ultra Green | 573 | 30 | 45 | 30 | 45 |
| LD2841APG | LD2841BPG | InGaN | Pure Green | 525 | 120 | 300 | 120 | 300 |
| LD2841AUB | LD2841BUB | InGaN | Ultra Blue | 470 | 30 | 45 | 30 | 45 |
| LD2841AUW | LD2841BUW | InGaN | Ultra White | 100 | 120 | 100 | 120 | |
| Unit: | nm | mcd | mcd | mcd | mcd | |||
