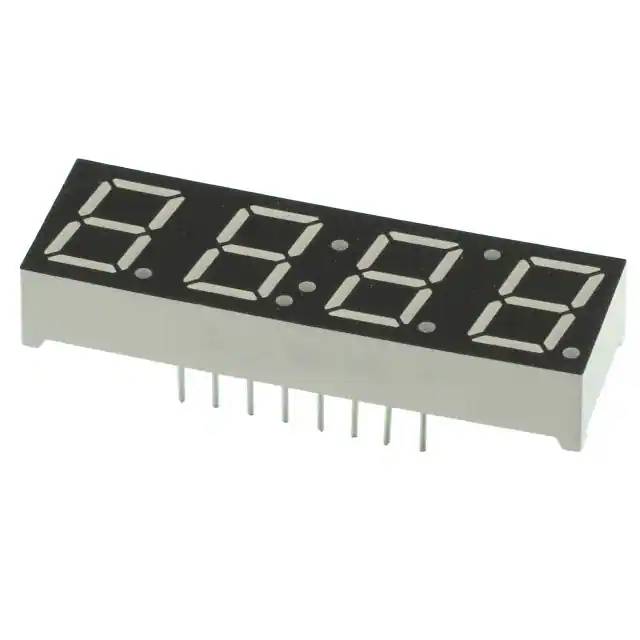

4 Digit 0.36 Inch Single Color 7 Segment Display



Port: Shenzhen, China
Production Capacity: 1000000PCS/Year
Payment Terms: L/C, T/T, Western Union, Paypal
Tube Chip Color: Single Color
Display Function: Numbers and Some Alphabets
Scanning Mode: Static Scan
Display Type: Segment LED Display
Application: Shopping Guide, Meters and Instruments
Certification: RoHS, Reach
Compare
Add to wishlist

Enquiry about 4 Digit 0.36 Inch Single Color 7 Segment Display

  • Description
  • PRODUCT DESCRIPTION
  • Product Details
Description

Basic Info.

Model NO.
LD3641A/B
Outline Dimensions
30.00X14.00X7.20mm
Digit Height
0.36 Inch(9.2mm)
Emitting Color
Single Color
Dp Number
4PCS
Digit Number
4 Digit
Chip Matrial
4-Element
Transport Package
EPE Foam and Carton
Specification
RoHS, REACH
Origin
China
HS Code
8531200000
PRODUCT DESCRIPTION

PRODUCT DESCRIPTION

Product Name

0.36 Inch 4 Digit 7 Segment LED Display with RoHS from expert manufacturer

Package Dimensions

0.36 Inch 4 Digit 7 Segment LED Display with RoHS From Expert Manufacturer0.36 Inch 4 Digit 7 Segment LED Display with RoHS From Expert Manufacturer

Features

Ø         9.2 mm (0.36 inch) digit high
Ø         Excellent digit appearance
Ø         Wide viewing angle
Ø         Range of emitted colors
Ø         I.C. compatible
Ø         Low power consumption
Ø         White segment
Ø         RoHS compliant

Available Options

Ø         Alternative emitting luminosity:
Ø         Standard or high brightness version
Ø         Alternative emitted color
Ø         Alternative segment color
Ø         Alternative font
Ø         Common Cathode is available
Ø         Cropped terminal pins

Selection Guide
Four Digits 7 Segment LED Display, Digit Height: 9.20mm(0.36inch), External Dimensions: 30.00×14.00×7.20mm (L x W x H)
Part No. Chip Iv@IF=20mA Iv@IF=20mA
Common
Cathode
Common
Anode
Material Color WLD One Seg One DP
Min. Typ. Min. Typ.
 LD3641AR  LD3641BR GaAlAs Super Red 640 8 10 8 10
 LD3641AD  LD3641BD GaAlAs Hi-Red 640 18 25 18 25
 LD3641AO  LD3641BO GaAsP Orange 625 7 9 7 9
 LD3641AY  LD3641BY GaAsP Yellow 588 8 10 8 10
 LD3641AG  LD3641BG GaP Green 568 7 9 7 9
 LD3641AUR  LD3641BUR AlGaInP Ultra Red 640 30 45 30 45
 LD3641AUO  LD3641BUO AlGaInP Ultra Orange 625 45 60 45 60
 LD3641AUA  LD3641BUA AlGaInP Ultra Amber 605 30 45 30 45
 LD3641AUY  LD3641BUY AlGaInP Ultra Yellow 595 30 45 30 45
 LD3641AUG  LD3641BUG AlGaInP Ultra Green 573 30 45 30 45
 LD3641APG  LD3641BPG InGaN Pure Green 525 120 300 120 300
 LD3641AUB  LD3641BUB InGaN Ultra Blue 470 30 45 30 45
 LD3641AUW  LD3641BUW InGaN Ultra White 100 120 100 120
Unit: nm mcd mcd mcd mcd

>> 7 segment LED display Series

0.36 Inch 4 Digit 7 Segment LED Display with RoHS From Expert Manufacturer



Our Services/Why choose Us

1. Professional service:  replied within 24 hours(at workdays).
2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.
4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.
