Basic Info.
Model NO.
LD3241
Specification
RoHS, REACH
Origin
China
HS Code
8531200000

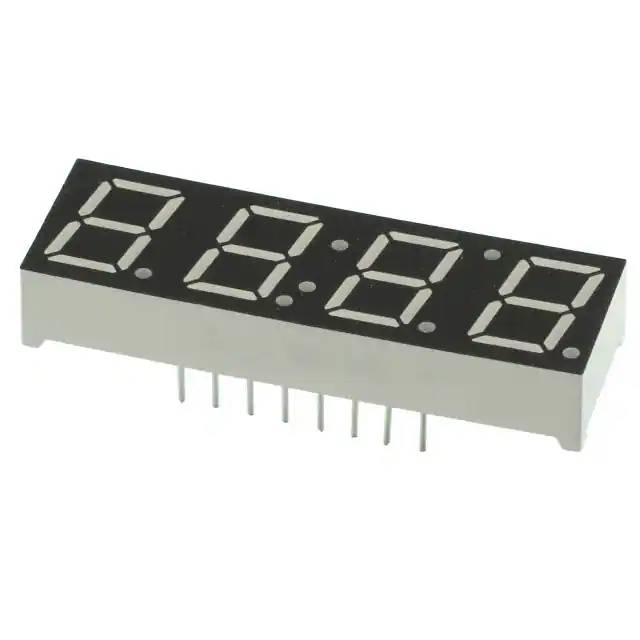

4 Digit 0.32 Inch Single Color 7 Segment Display
| Port: | Shenzhen, China |
|---|---|
| Production Capacity: | 10 000 000PCS/Year |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Outline Dimensions: | 28X11X5mm |
|---|---|
| Digit Height: | 0.32 Inch |
| Digit Number: | 4 Digit |
| Chip Matrial: | 4-Element |
| Dp Number: | 4 |
| Transport Package: | Reel Packing |
Enquiry about 4 Digit 0.32 Inch Single Color 7 Segment Display
Description
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
0.32 Inch Four Digits 7 Segment LED Display with RoHS
What is the size detail and circuit?
1. Summary:
| Digit Height: | 0.32 inch digit height |
| Available Emitting color: | Red, yellow-green, orange, amber, yellow, pure green, blue, white |
| Available Face color: | Red, white, grey, and black. |
| Available Segment Color: | Red, white (milky),water clear, and yellow. |
| Available Electrode: | Common anode or common cathode |
2. What emitting color you can have?
| Part No. | Chip | IV@IF=20mA | Iv@IF=20mA | |||||
| Common Cathode | Common Anode |
Material | Color | WLD | One Seg | One DP | ||
| Min. | Typ. | Min. | Typ. | |||||
| LD3241AUR | LD3241BUR | AlGaInP | Ultra Red | 640 | 30 | 45 | 30 | 45 |
| LD3241AUO | LD3241BUO | AlGaInP | Ultra Orange | 625 | 45 | 60 | 45 | 60 |
| LD3241AUA | LD3241BUA | AlGaInP | Ultra Amber | 605 | 30 | 45 | 30 | 45 |
| LD3241AUY | LD3241BUY | AlGaInP | Ultra Yellow | 595 | 30 | 45 | 30 | 45 |
| LD3241AUG | LD3241BUG | AlGaInP | Ultra Green | 573 | 30 | 45 | 30 | 45 |
| LD3241APG | LD3241BPG | InGaN | Pure Green | 525 | 120 | 300 | 120 | 300 |
| LD3241AUB | LD3241BUB | InGaN | Ultra Blue | 470 | 30 | 45 | 30 | 45 |
| LD3241AW | LD3241BW | InGaN | Ultra White | 100 | 120 | 100 | 120 | |
| Unit: | nm | mcd | mcd | mcd | mcd | |||
3. What max voltage and current you can use to drive it?
| Color | Electrical Characteristics[1] | Absolute Maximum Ratings[1] | |||||
| VF@ IF=20mA[2] | Reverse Current VR=5V |
Power Dissipation | DC Forward Current | Peak Forward Current[3] | |||
| Typ. | Max. | ||||||
| Ultra Red | 1.9 | 2.6 | 30 | 60 | 20 | 100 | |
| Ultra Orange | 2.0 | 2.6 | 30 | 65 | 20 | 100 | |
| Ultra Amber | 2.0 | 2.6 | 30 | 65 | 20 | 100 | |
| Ultra Yellow | 2.0 | 2.6 | 30 | 65 | 20 | 100 | |
| Ultra Green | 2.1 | 2.6 | 30 | 75 | 20 | 100 | |
| Pure Green | 3.0 | 3.6 | 30 | 110 | 20 | 100 | |
| Ultra Blue | 3.0 | 3.6 | 30 | 120 | 20 | 100 | |
| White | 3.0 | 3.6 | 30 | 120 | 20 | 100 | |
| Unit: | V | V | uA | mW | mA | mA | |
