| Port: | Shenzhen, China |
|---|---|
| Production Capacity: | 10 000 000PCS/Year |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Usage: | LED Display |
|---|---|
| Size: | 5*7 |
| Emitting Color: | Two-color |
| Power: | 3W |
| IP Rating: | Not Water-Proof |
| Pixel Pitch: | 6mm |

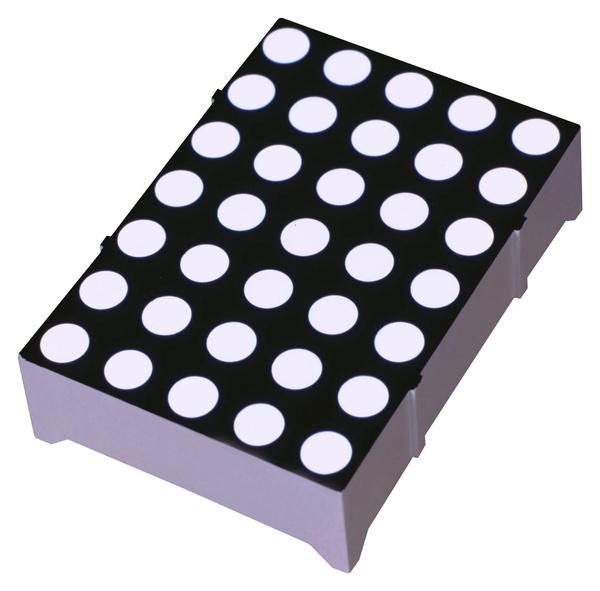

1. Summary:
| Digit Height: | 1.8 inch digit height |
| Available Emitting color: | Red, yellow-green, orange, amber, yellow, pure green, blue, white |
| Available Face color: | Red, white, grey, and black. |
| Available Segment Color: | Red, white (milky),water clear, and yellow. |
| Available Electrode: | Common anode or common cathode |
2. What emitting color you can have?
| Description | Part No. | Chip | Iv(mcd)@20mA | ||||
| Cathode Row | Anode Row | Material | Color | W LD (nm) |
One Dot | ||
| Min. | Typ. | ||||||
| Standard Brightness |
LM18058ARG | LM14058BRG | GaAlAs | Super Red | 640 | 8 | 10 |
| GaP | Green | 568 | 7 | 9 | |||
| Ultra-High Brightness |
LM18058AURUG | LM14058BURUG | AlGaInP | Ultra Red | 640 | 30 | 45 |
| AlGaInP | Ultra Green | 573 | 30 | 45 | |||
3. What max voltage and current you can use to drive it?
| LM18058A/BRG | Electrical optical Characteristics[1] | Absolute Maximum Ratings[1] | ||||||
| Color Per Chip |
Forward Voltage(V) @ IF=20mA |
Reverse Current VR=5V (uA) |
Power Dissipation (mW) |
DC Forward Current (mA) |
Peak Forward Current[2] (mA) |
Reverse Voltage (V) |
||
| Typ. | Max. | |||||||
| Super Red | 1.8 | 2.2 | 30 | 60 | 20 | 100 | 5 | |
| Green | 1.9 | 2.3 | 30 | 80 | 20 | 100 | 5 | |
| Ultra Red | 1.9 | 2.6 | 30 | 60 | 20 | 100 | ||
| Ultra Green | 2.1 | 2.6 | 300 | 75 | 20 | 100 | 5 | |
| Operating/ Storage Temp.: -40 to +80 deg.; Lead Solder Temp.: 260 deg. for 3-5 Sec. 2mm below package base |
||||||||
>>>MICRO IC LED Dot Matrix Series
Ø The common types: 4X4, 5X7, 5X8, 8X8, and 16X16.
Ø The common size: 0.7 inch,1 inch,1.2 inch,1.5inch,2 inch,3 inch, and 4 inch.
Ø Through-hole type or SMD Type is available.
Ø Round dot or Square dot is available.
Ø Our White color LED dot matrix is high-quality made with Good brightness Uniformity compared to common white color products in the market.
