4 Digit 0.3 Inch Single Color 7 Segment Display
| Port: | Shenzhen, China |
|---|---|
| Production Capacity: | 1000000PCS/Year |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Outline Dimensions: | 30.4X13.2X7mm |
|---|---|
| Digit Height: | 0.3 Inch(7.6mm) |
| Emitting Color: | Red Color |
| Dp Number: | 10PCS |
| Digit Number: | 4 Digits |
| Chip Matrial: | 4-Element |
Enquiry about 4 Digit 0.3 Inch Single Color 7 Segment Display
Description
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION

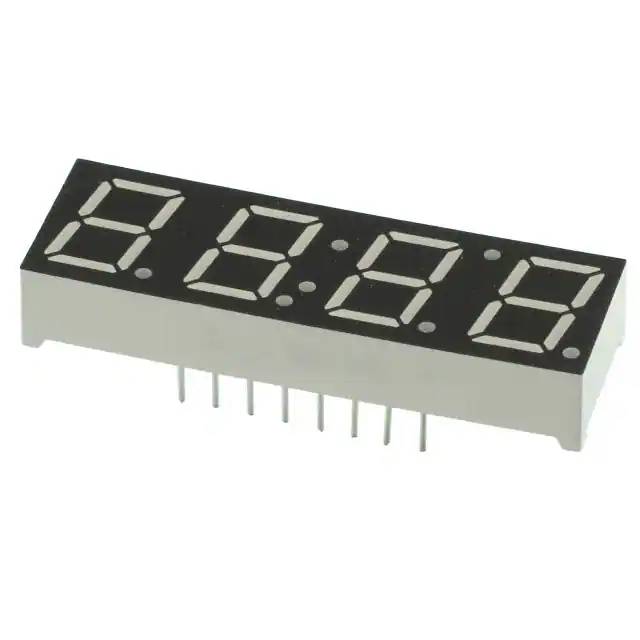

0.3 Inch 4 Digit 7 Segment LED Display with seven segments and DP.
Ø 7.60 mm (0.30 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Ø Alternative emitting luminosity:
Ø Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
| Four Digit 7 Segment LED Display, Digit Height:7.60mm(0.30 inch), External Dimensions: 30.40×13.20×7.00mm (L x W x H) | ||||||||
| Part No. | Chip | IV@IF=20mA | Iv@IF=20mA | |||||
| Common Cathode | Common Anode |
Material | Color | WLD | One Seg | One DP | ||
| Min. | Typ. | Min. | Typ. | |||||
| LD3041AR | LD3041BR | GaAlAs | Super Red | 640 | 8 | 10 | 8 | 10 |
| LD3041AD | LD3041BD | GaAlAs | Hi-Red | 640 | 18 | 25 | 18 | 25 |
| LD3041AO | LD3041BO | GaAsP | Orange | 625 | 7 | 9 | 7 | 9 |
| LD3041AY | LD3041BY | GaAsP | Yellow | 588 | 8 | 10 | 8 | 10 |
| LD3041AG | LD3041BG | GaP | Green | 568 | 7 | 9 | 7 | 9 |
| LD3041AUR | LD3041BUR | AlGaInP | Ultra Red | 640 | 30 | 45 | 30 | 45 |
| LD3041AUO | LD3041BUO | AlGaInP | Ultra Orange | 625 | 45 | 60 | 45 | 60 |
| LD3041AUA | LD3041BUA | AlGaInP | Ultra Amber | 605 | 30 | 45 | 30 | 45 |
| LD3041AUY | LD3041BUY | AlGaInP | Ultra Yellow | 595 | 30 | 45 | 30 | 45 |
| LD3041AUG | LD3041BUG | AlGaInP | Ultra Green | 573 | 30 | 45 | 30 | 45 |
| LD3041APG | LD3041BPG | InGaN | Pure Green | 525 | 120 | 300 | 120 | 300 |
| LD3041AUB | LD3041BUB | InGaN | Ultra Blue | 470 | 30 | 45 | 30 | 45 |
| LD3041AUW | LD3041BUW | InGaN | Ultra White | 100 | 120 | 100 | 120 | |
| Unit: | nm | mcd | mcd | mcd | mcd | |||
Electrical Characteristics & Absolute Maximum Ratings
| Color | Electrical Characteristics[1] | Absolute Maximum Ratings[1] | |||||
| Forward Voltage@ IF=20mA | Reverse Current VR=5V |
Power Dissipation | DC Forward Current | Peak Forward Current[2] | |||
| Typ. | Max. | ||||||
| Super Red | Per Seg. | 1.8 | 2.2 | 30 | 60 | 25 | 100 |
| Per DP | 1.8 | 2.2 | 30 | 60 | 25 | 100 | |
| Hi-Red | Per Seg. | 1.8 | 2.2 | 30 | 60 | 25 | 100 |
| Per DP | 1.8 | 2.2 | 30 | 60 | 25 | 100 | |
| Orange | Per Seg. | 2.1 | 2.5 | 30 | 80 | 30 | 100 |
| Per DP | 2.1 | 2.5 | 30 | 80 | 30 | 100 | |
| Yellow | Per Seg. | 2.1 | 2.5 | 30 | 80 | 30 | 100 |
| Per DP | 2.1 | 2.5 | 30 | 80 | 30 | 100 | |
| Green | Per Seg. | 2.2 | 2.5 | 30 | 80 | 30 | 100 |
| Per DP | 2.2 | 2.5 | 30 | 80 | 30 | 100 | |
| Ultra Red | Per Seg. | 1.9 | 2.6 | 30 | 60 | 30 | 100 |
| Per DP | 1.9 | 2.6 | 30 | 60 | 30 | 100 | |
| Ultra Orange | Per Seg. | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Per DP | 2 | 2.6 | 30 | 65 | 30 | 100 | |
| Ultra Amber | Per Seg. | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Per DP | 2 | 2.6 | 30 | 65 | 30 | 100 | |
| Ultra Yellow | Per Seg. | 2 | 2.6 | 30 | 65 | 30 | 100 |
| Per DP | 2 | 2.6 | 30 | 65 | 30 | 100 | |
| Ultra Green | Per Seg. | 2.1 | 2.6 | 30 | 75 | 30 | 100 |
| Per DP | 2.1 | 2.6 | 30 | 75 | 30 | 100 | |
| Pure Green | Per Seg. | 3.5 | 4 | 30 | 110 | 30 | 100 |
| Per DP | 3.5 | 4 | 30 | 110 | 30 | 100 | |
| Ultra Blue | Per Seg. | 3.5 | 4 | 30 | 120 | 30 | 100 |
| Per DP | 3.5 | 4 | 30 | 120 | 30 | 100 | |
| Ultra White | Per Seg. | 3.5 | 4 | 30 | 120 | 30 | 100 |
| Per DP | 3.5 | 4 | 30 | 120 | 30 | 100 | |
| Unit: | V | V | uA | mW | mA | mA | |
Notes:
1. At Ta = 25 °C.
2. Peak forward current at 1/10 Duty Cycle, 0.1ms Pulse.
